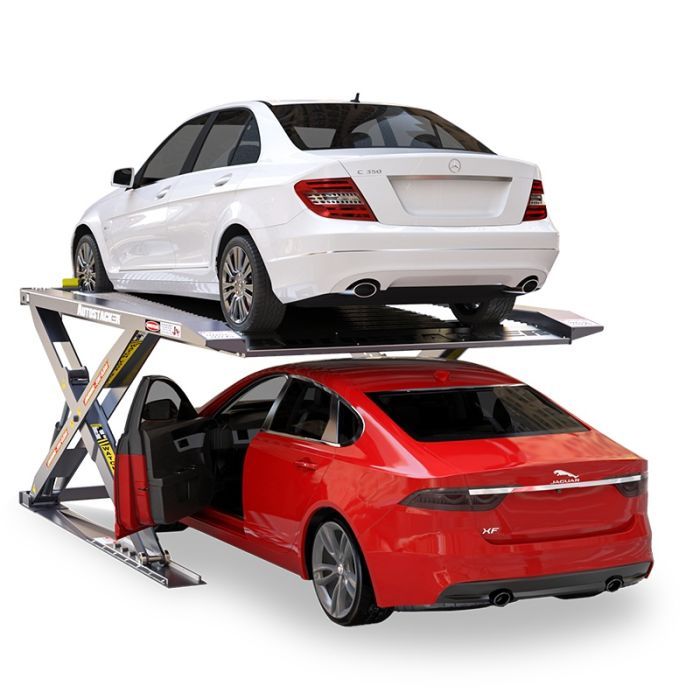

Autostacker (A6S) is the fully collapsible parking lift that doubles the vehicle capacity of a single parking space. Ideal for home garages and commercial applications alike, this unique lift offers a minimal footprint that maximizes expansion. Easy and safe to use both indoors and outdoors.
SPECIFICATIONS
- 6,000‐lb. lifting capacity
- Key‐switch disconnect fully disables operation for enhanced security
- Audible alarm and warning buzzer alerts operator and bystanders when the lift is in operation
- Accommodates cars, light trucks and SUVs
- Rugged, welded‐steel construction is strong and durable
- 100% hot‐dipped, galvanized steel platform
- Attractive slate gray, baked‐on powder coat finish provides added toughness
- Front wheel dish acts as a wheel chock to prevent vehicles from rolling forward or backward
- Full‐width, gradual sloping platform reduces entry ramp height
- Automatic safety locks engage at five different parking heights
- Simple push‐button controls
- Dual, direct‐drive hydraulic lifting cylinders
- Dependable hydraulic circuit that provides precise, equalized lifting
- Variable height parking accommodates a wide range of vehicle and ceiling heights
- Contoured scissor legs provide rigidity, decreased deflection and a low collapsed height
- Full‐width, straight‐through axles increase overall stability and tracking through the vertical travel range
- Full‐width pivot pins promote straighter tracking of the scissor legs throughout travel—vital for eccentric loads
- Extra‐wide, heavy‐duty steel scissor arms with cross member bracing enhance stability
- Unique clevis‐design scissor ends lower stress and increase rigidity by distributing loads symmetrically over the pins
- Patented asymmetric scissor arms provide greater underside door clearance
- Patented Door‐sentry™ car door protectors are made from energy‐absorbing rubber to protect against accidental scratches or door dings
- Space‐saving design is perfect for commercial or residential applications
- Minimal footprint fits a typical parking space
- Hydraulic safety valves (velocity fuses) prevent sudden, unexpected platform collapse in the unlikely event of hydraulic system failure
- UL Listed electrical components meet National Electrical Code (NEC) requirements
| Style | |
| Style: | Multi-Platform Parking Lift |
| Capacity | |
| Lifting Capacity: | 6,000 lbs. (2,722 kg) |
| Overall width: | 103” (2,620 mm) |
| Overall length: | 143” (3,632 mm) |
| Platform length: | 124” (3,150 mm) |
| Platform width: | 83.75” (2,128 mm) |
| Platform height (forward): | 13” (330 mm) |
| Ramp height (entry): | 2” (51 mm) |
| Maximum underclearance: | 80” (2,032 mm) |
| Under clearance on 1st lock (lowest): | 52.5″ (1,331 mm) |
| Under clearance on 2nd lock: | 60.75″ (1,543 mm) |
| Under clearance on 3rd lock: | 68.5″ (1,736 mm) |
| Under clearance on 4th lock: | 75″ (1,909 mm) |
| Under clearance on 5th lock (highest): | 81.25″ (2,064 mm) |
| Motor: | 208-240V, 50/60 Hz / 1 Ph |
| Noise: | 52 dB |
| Shipping Weight: | 2,558 lbs. (1,160 kg) |
| Shipping Dimensions: | 143” x 28” x 22” (3632 mm x 711 mm x 558.8 mm) |
