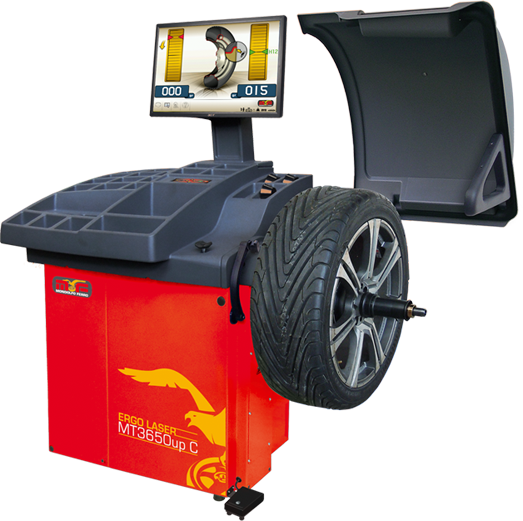

Attractive and original design, in remarkable dimensions.
Fast and accurate, suitable for high working loads.
Wide-screen monitor ideal for displaying high resolution graphics and dedicated software.
As standard, the Easy Weight programme suite which included Minimum Weight. This software allows a significant reduction of balancing weights, through the analysis of different threshold values, according to the vehicle type: fast or slow (unique on the market).
TECHNICAL DATA
| Rim width setting range | 11 -28 “ |
| Rim diameter setting range | 1 – 35 “ |
| Rim diameter measurable with the sensor | 1,5 – 20 “ |
| Maximum wheel width | 600 mm |
| Maximum wheel diameter | 1118 mm |
| Average measuring time | 7 s |
| Maximum wheel weight | 75 kg |
| Balancing speed | 90 -130 rpm |
Sensitivity calibration
Quickly and intuitive sensitivity calibration. The sample weight supplied with the machine is simply applied directly to the spin unit, ensuring maximum precision and eliminating operator error.
WHEEL CLAMPING
With manual wheel clamping with quick ring. With new PNEULOCK automatic air wheel clamping system, with constant torque, for shorter operative times and higher centering accuracy
LED spotlight – LASER LINE SYSTEM
LED spotlight to light-up the work area and make it easier to clean the rim, check the wheel and apply weights.
The adhesive weights can be positioned extremely rapidly using the laserpointerat 6 o’clock ( (LASER LINE SYSTEM)
